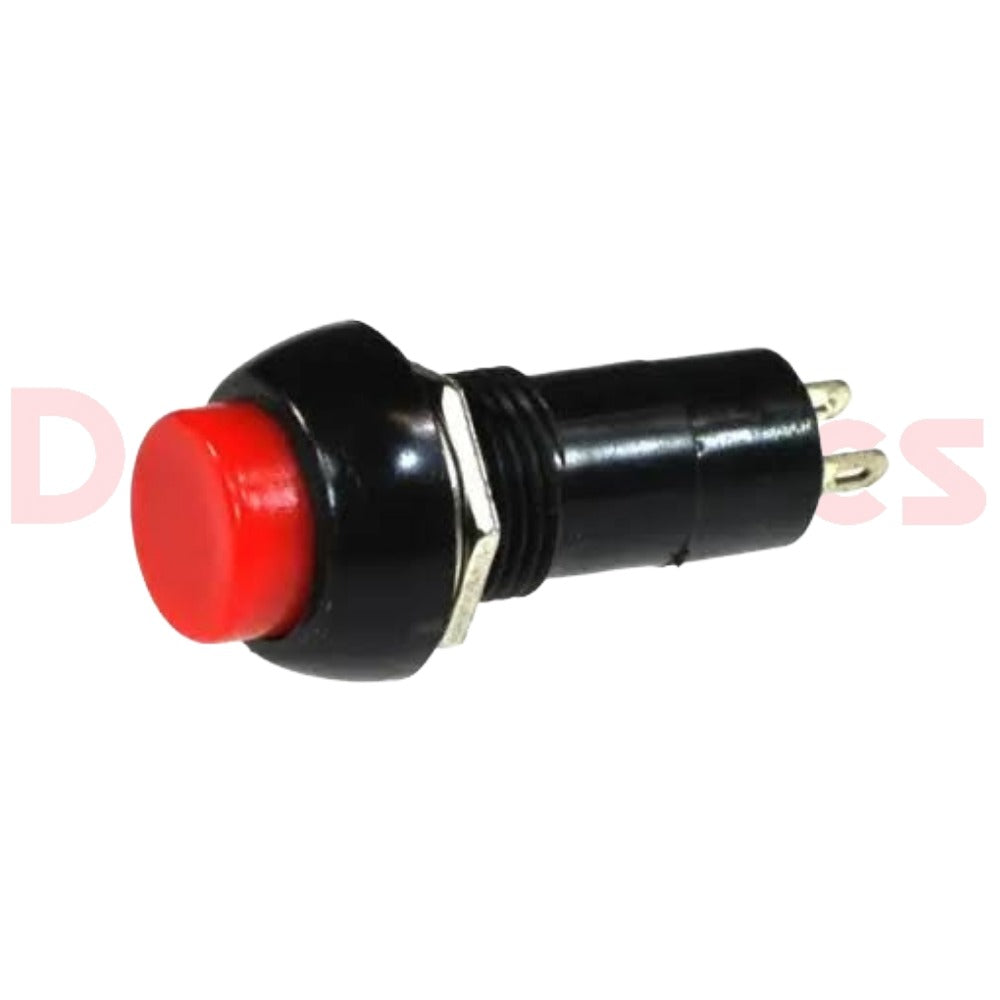

SPST Push Button ON-OFF Switch (Panel Mount, Latching / Self-Locking)

Compact and durable Single Pole Single Throw (SPST) ON-OFF push button switch designed for power control in DIY electronics, robotics, custom instrument panels, and prototyping enclosures. Operating with a reliable latching (push-to-lock ON, push-again to unlock OFF) mechanism, it offers a distinct tactile click and solid electrical contact for seamless DC and low-voltage AC switching.

Equipped with a threaded bushing, mounting nut, and washer, this panel-mount switch easily installs into drilled enclosure panels, project boxes, or dashboards.

Key Specifications

• Switch Type: SPST (Single Pole Single Throw)

• Operation Mode: Latching / Self-Locking (Push ON, Push OFF)

• Contact Rating: 1A to 3A @ 125V–250V AC / up to 30V DC

• Terminals: 2 Solder Lugs / Quick-connect pins

• Mounting Style: Panel Mount (Threaded with retaining nut)

• Cutout Diameter: ~12 mm (standard chassis hole)

• Contact Resistance: ≤ 50 mΩ

• Insulation Resistance: ≥ 100 MΩ (500V DC)

• Mechanical Life: ≥ 10,000 cycles

Common Applications

• Main power switch for Arduino, ESP32, and Raspberry Pi project boxes

• Battery pack master cut-off switches for DIY robotics and RC models

• LED lighting panels, test benches, and workbench power supplies

• Audio amplifiers, guitar pedal bypass circuits, and home automation units

Wiring & Installation Guide

• Standard 2-pin pass-through wiring: insert the switch in series along the positive supply line (DC + or AC Live).

• Fits standard enclosure cutouts; secure using the provided panel nut and washer for vibration-resistant mounting.
