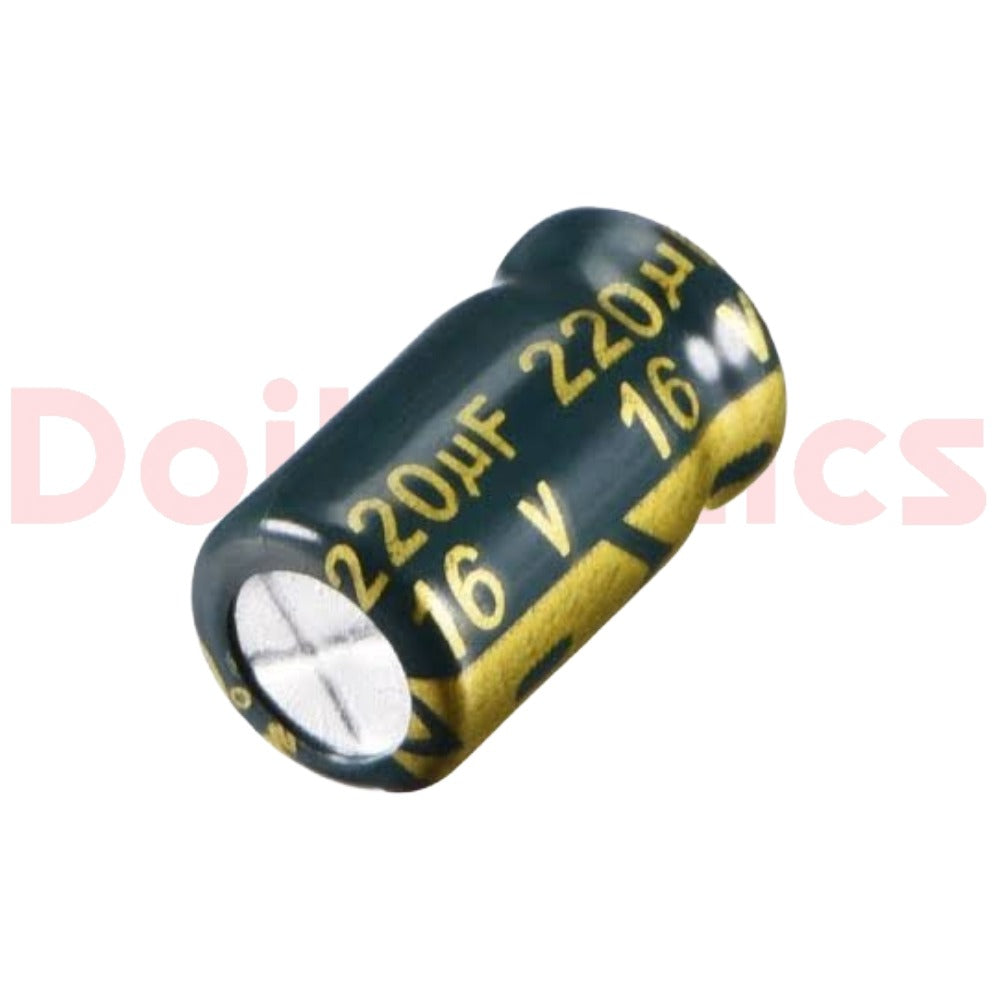

220uF 16V Radial Aluminum Electrolytic Capacitor

Compact and reliable 220µF 16V radial aluminum electrolytic capacitor, ideal for low-voltage power rail decoupling, ripple smoothing, and voltage stabilization. Designed with standard radial through-hole leads, it easily fits solderless breadboards, perfboards, and standard printed circuit boards (PCBs).

Key Specifications

• Capacitance: 220 µF

• Rated Voltage: 16V DC

• Capacitance Tolerance: ±20%

• Type: Radial Lead Aluminum Electrolytic

• Operating Temperature Range: -40°C to +105°C (standard industrial grade)

• Mounting Type: Through-Hole (Radial)

• Polarity: Polarized (negative terminal indicated by casing stripe)

Common Applications

• 3.3V, 5V, and 9V DC power supply filtering and ripple reduction

• Decoupling for microcontrollers (Arduino, ESP8266, ESP32, STM32)

• Audio amplifiers and audio filtering stages

• General DIY robotics, IoT sensor modules, and board repairs

Polarity & Installation Note: This component is polarized. The negative terminal is identified by the color stripe along the body and the shorter lead. Ensure correct polarity and keep working voltages below 16V to prevent component damage.
