- Sku: A4A

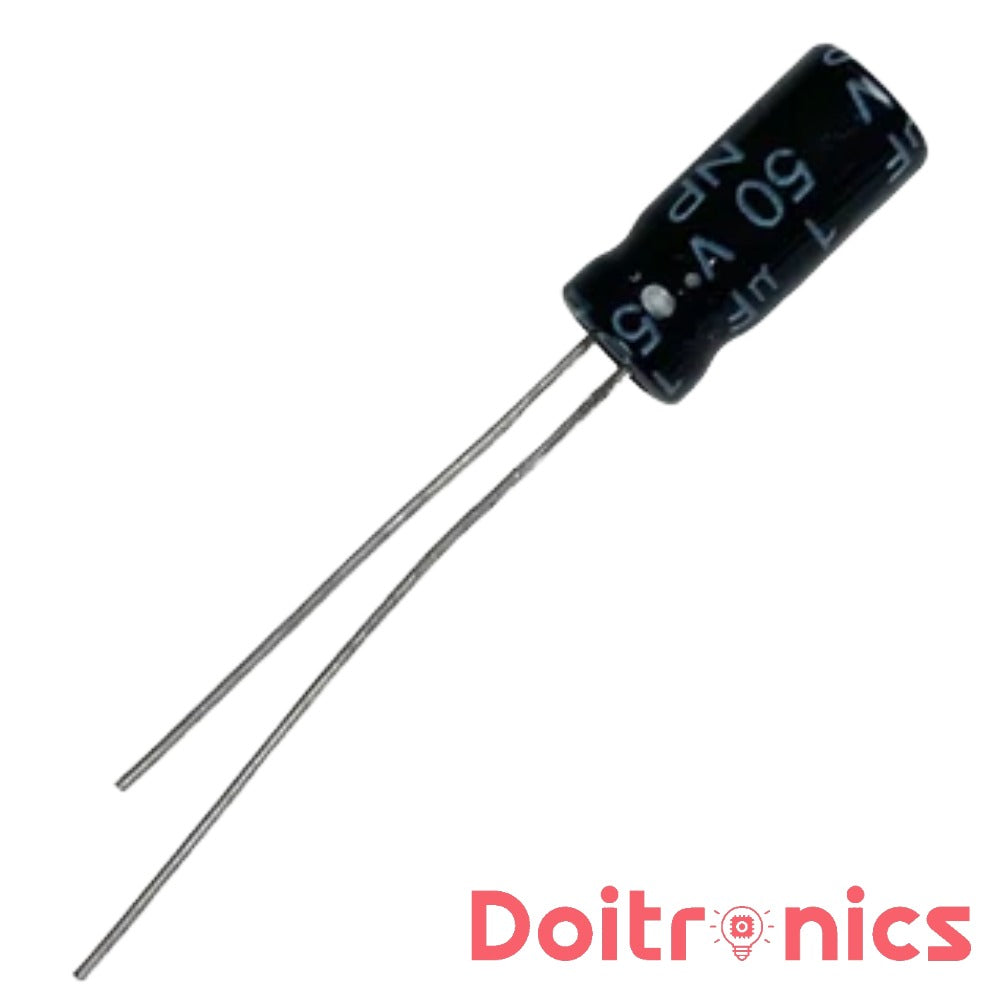

1uF 50V Electrolytic Capacitor – Radial Lead (Through-Hole)
This high-reliability 1µF 50V radial aluminum electrolytic capacitor is built for general-purpose electronic circuits, prototyping, and DIY hardware repair. Designed for through-hole mounting, it offers stable performance across decoupling, power supply filtering, and signal-coupling applications.
Key Features
-
Compact Radial Format: Standard through-hole leads fit breadboards, perfboards, and custom PCBs.
-
Wide Operating Voltage: Rated up to 50V DC for safe headroom in low-to-medium voltage circuits.
-
Polarized Design: Marked negative stripe ensures quick visual alignment during assembly.
Technical Specifications
| Specification | Details |
| Capacitance | 1 µF (1 uF) |
| Rated Voltage | 50V DC |
| Dielectric Material | Aluminum Electrolytic |
| Mounting Type | Through-Hole (Radial Leads) |
| Tolerance | ±20% |
| Operating Temperature | -40°C to +85°C (standard) / +105°C (high-temp) |
| Lead Spacing (Pitch) | Standard ~2.0 mm / 2.5 mm |
Common Applications
-
DC-DC power supply filtering and ripple smoothing
-
Audio signal bypass and DC-blocking
-
Timing, oscillator, and pulse circuits
-
Arduino, Raspberry Pi, and microcontroller project power rails
