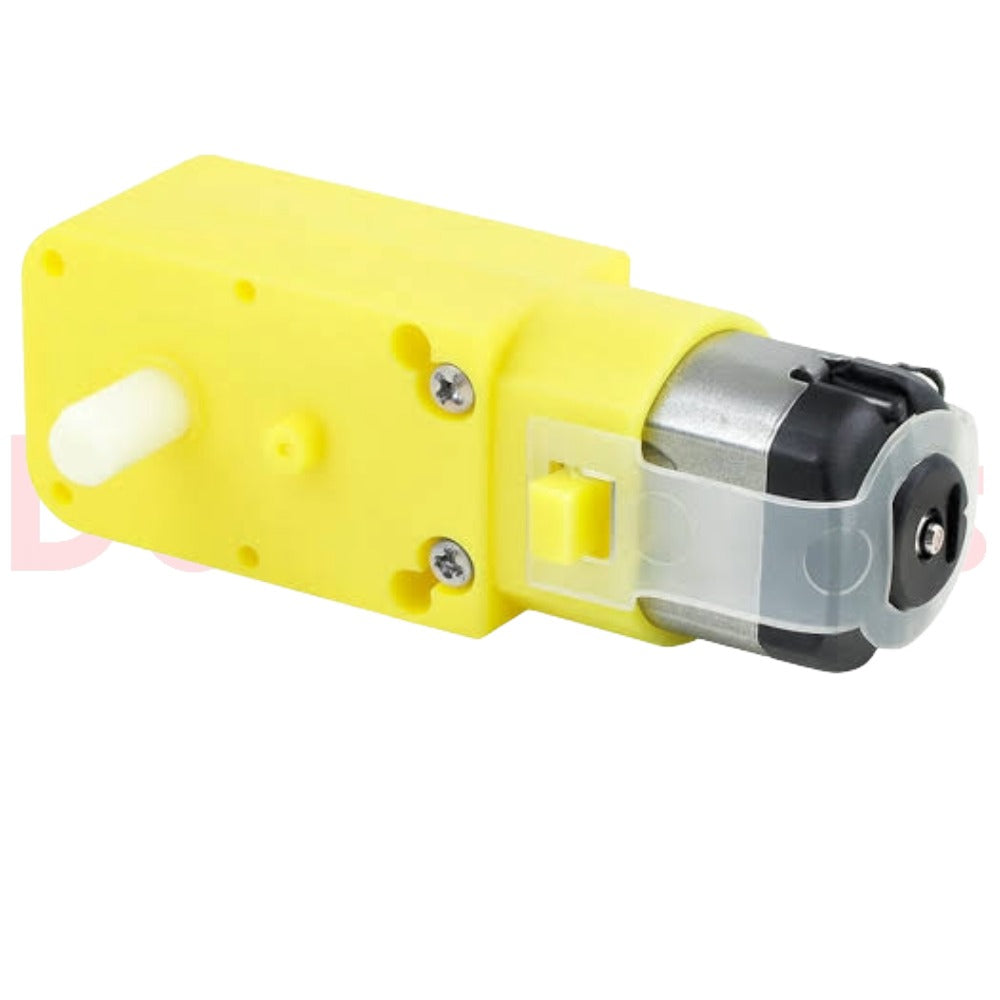

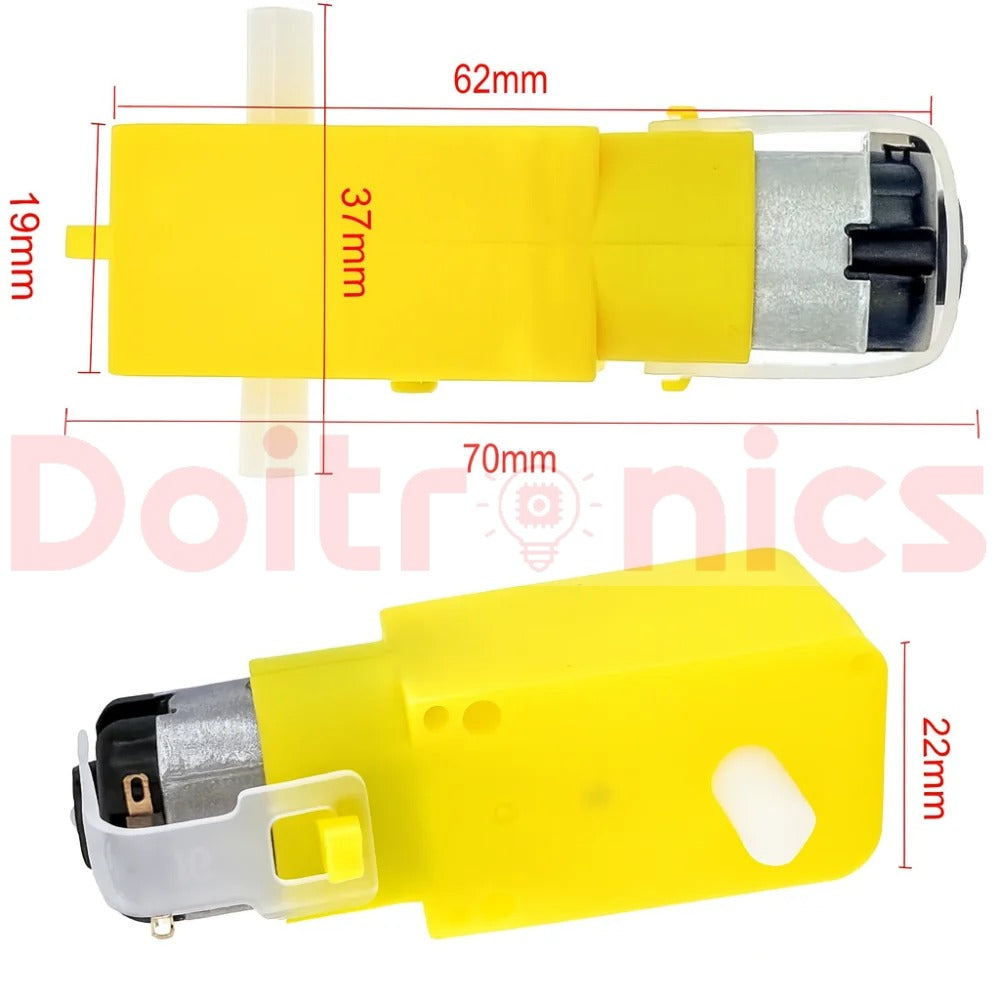

100 RPM Dual Shaft Straight BO Motor (3V–6V DC) for Robotics & DIY Smart Cars

A lightweight, high-torque battery-operated (BO) DC geared motor designed for DIY hobbyists, STEM projects, and educational robotics. Featuring a straight dual-shaft configuration and internal plastic gears, it allows you to mount a drive wheel on one side and an optical encoder disc or secondary wheel on the other.

Key Features & Technical Specifications:

• Operating Voltage: 3V to 6V DC (Nominal: 5V)

• No-Load Speed: 100 RPM at 5V

• Shaft Type: Straight dual-sided flat/slotted shaft (standard BO wheel fit)

• Current Draw: 40–80 mA (no-load), up to ~500 mA (stall at 6V)

• Gear Material: High-grade wear-resistant plastic

• Applications: Line-following robots, obstacle avoiders, two-wheel drive (2WD) / 4WD robotic chassis, RC buggies.
